NE-T4-100RT Electric Pipe Threading Machine

MOQ : 10 Piece

Business Type Manufacturer, Exporter, Supplier
Model No. NE-T4-100RT
Motor 1500W induction, 50/60Hz, single phase
Switch ON/OFF heavy duty switch, foot switch and FOR/OFF/REV switch is optional
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Spindle Speed
36/20/11 RPM.
Front Chuck
Hammer type with replaceable rocker action jaw inserts
Rear Centering Device
Cam action.
Oiling System
Through die head, with intergral oil reservoir
Oil Pump
Self-priming constant ow

Capacity :

  • Pipe: ¼”-4”(8mm-100mm)



Features :

  • Heavy-duty proven performance.
  • Threads ¼”-¾” pipe at 36RPM, 1”-2” at 20RPM, 2½”-4” at 11RPM.
  • An induction motor insures sound levels well when using.
  • Self-Contained Oil System with adjustable ow control.
  • A special capacitor-start / capacitor run motor allows the machine to thread where voltage drop is experienced.
  • ¼”-2” universal Die Head; 2½”-4” receding die head allows
  • Cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads.
  • Fast transport and set-up.



Standard Equipments :

  • Model NE-T4-100RT threading machine.

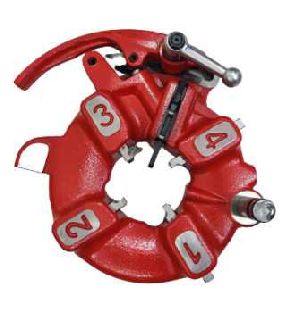

  • Self-opening die head, ¼”-2”

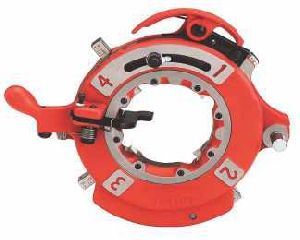

  • Receding self-opening die head, 2½”-4”
  • ½”-¾” universal HS dies set.
  • 1”-2” universal HS dies set
  • 2½”-4” universal HS dies set
  • Cutter: Capacity: 1/8”-4”(3mm-100mm) pipe
  • Reamer : Positive-locking, right-hand 1/8”-4”(3mm-100mm).



Accessories :

  • Die head, Self-open
  • Reamer, Cutter
  • Foot Pedal Switch (optional)
  • Nipple Chuck (optional)
  • HS Dies ½” to 3/4”, 1” to 2”, 2½ to 4”
  • Machine stand & Tool Kit
